CEESC Extra Large Cat Door (Outer Size 11"x9.8"), Weatherproof, White 25.54 lbs

Size: 1 Unité (Lot de 1)
Brand: CEESC
Color: White
Material: Acrylonitrile Butadiene Styrene
Mattress Thickness: 2.17 Inches

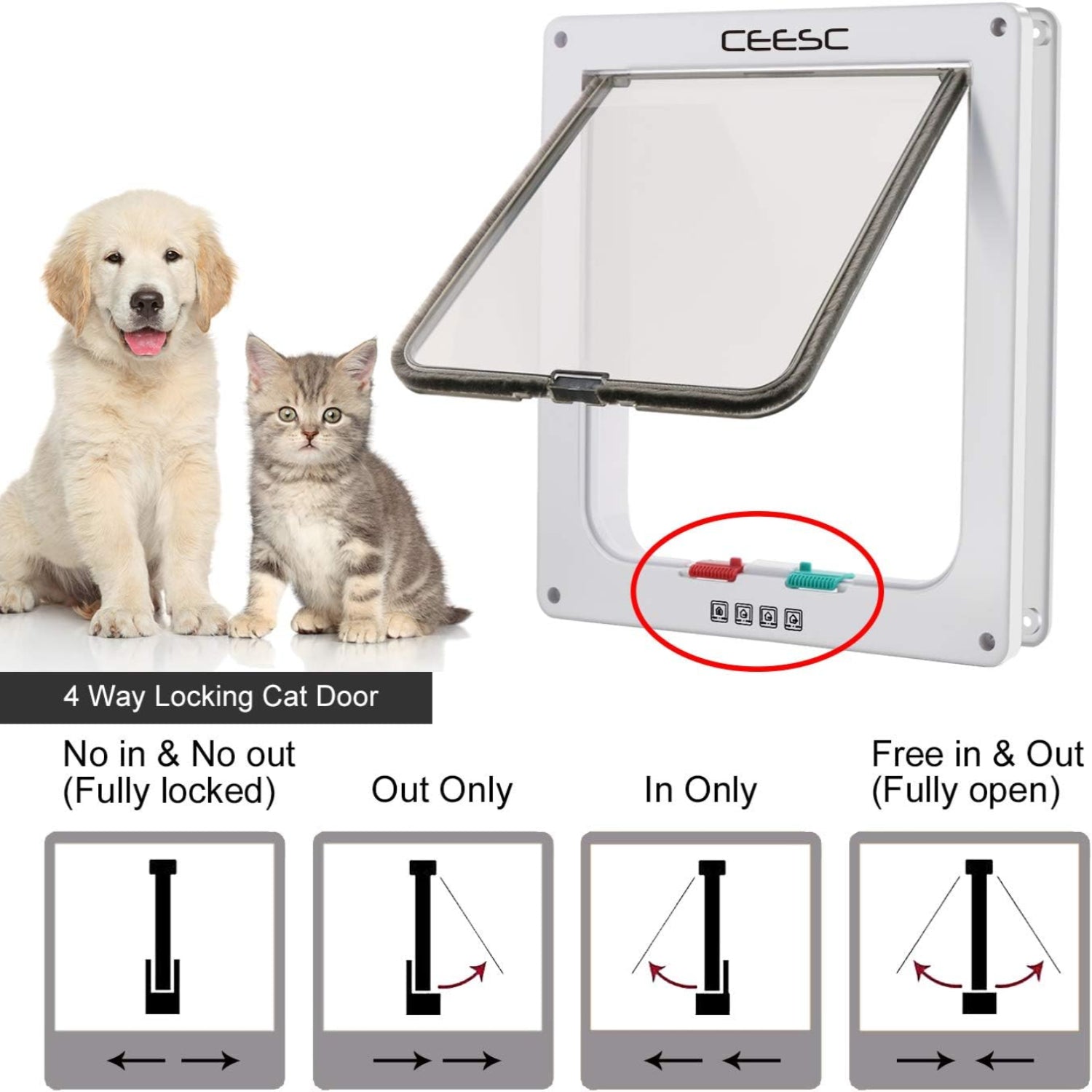

4 WAY SWITCH MODE --- The pet door could be adjusted by the Red and Green switches with tabs to 4 modes: out only, in only, both in and out, and fully locked, easy control of your pet's in and out

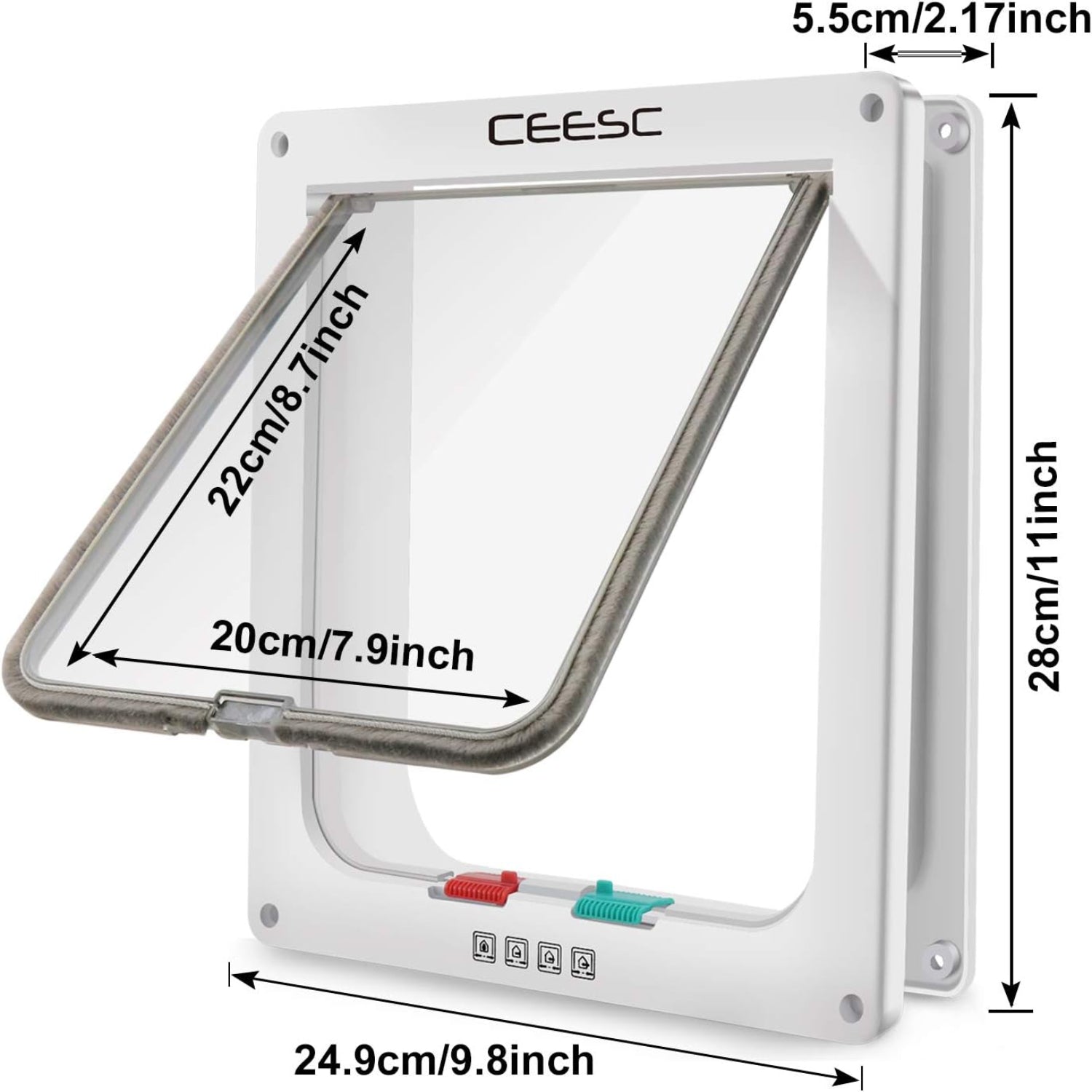

SIZE & APPLICATION --- Outer Size: 9.8" x 11" x 2.15"(W x H x D), Inner size: 7.9" x 8.7"(W x H), Cut-Out Size: 8.3" x 9.5" (W x H); fits doors and thin walls, for cats and doggie under 27.54 lbs and with a waist smaller than 24.8 inches
SAFE & THOUGHTFUL --- The transparent flap let pet see through the door. Exterior rain seal is for waterproof. Brush strip eliminates noise from the door closing
EASY TO INSTALL --- Complete instructions included, make you easily install in windows, doors, cupboards, panels and walls etc
EXCELLENT QUALITY --- Made of ABS material, weather-resistant, the surface is smooth and durable

Product information

Size: 1 Unité (Lot de 1)
Maximum Compatible Thickness: 2.17 Inches
Minimum Compatible Thickness: 2.17 Inches
Weight Capacity Maximum: 25.54 Pounds

Extra Large Cat Door Specifications

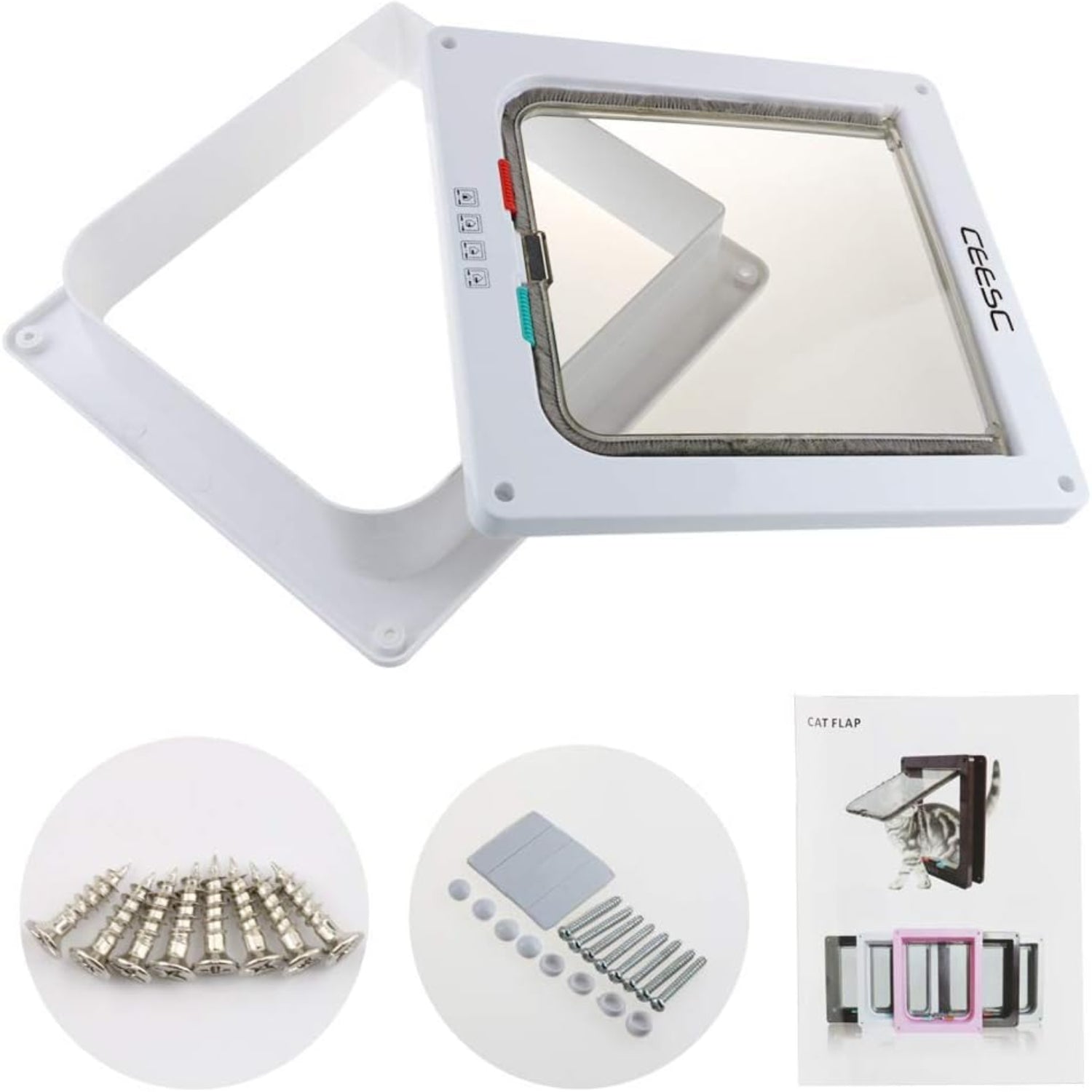

Package Includes of CEESC Extra Large Cat Door :

1 X Large Cat flap door

8 X Screws

8 X Screw caps

1 X Installation instructions

If the cat door is too thick for the door, please use scissors or cutting machine to cut along the line in the width of the frame.

Installion instructions

Draw the cat door frame on a paper board and cut it down.

Note:

You had better prepare these necessary tools first, pencil, ruller, electric saw, drill, screwdriver, double-side tape.

Use a pencil draw around the edge of the cut paper on the door you want to be fixed to.

Note:

Generally, average installation height is around 10-15 cm from the floor.

Drill 4 corners for thorough holes first with an electric drill.

Cut out the tunnel hole with an electric saw starting at holes drilled.

After the tunnel hole is cut out, it's better to wrap around it with a layer of wood skin. And if your hole is cutting a little big, it's quite neccessary.

If the cat door is too thick for your door, use a scissors or cutting machine to cut down some part of tunnel along the line A or B. The cutting scale is about 2-4CM.

Mount the cat door with double-side tape to the door. 8 screws have been provided for your use, tighten them with a screwdriver on both sides.

Note:

8 screws for 4 holes on both sides, screw them all in 2 sides as illustration shown above, please. These 8 screws are designed to work together, they are not short.

Place screw caps over the screw holes, press them on. The installation is completely done.
